Victron EasySolar-II GX 48V 5000VA

Victron EasySolar-II GX 48V 5000VA

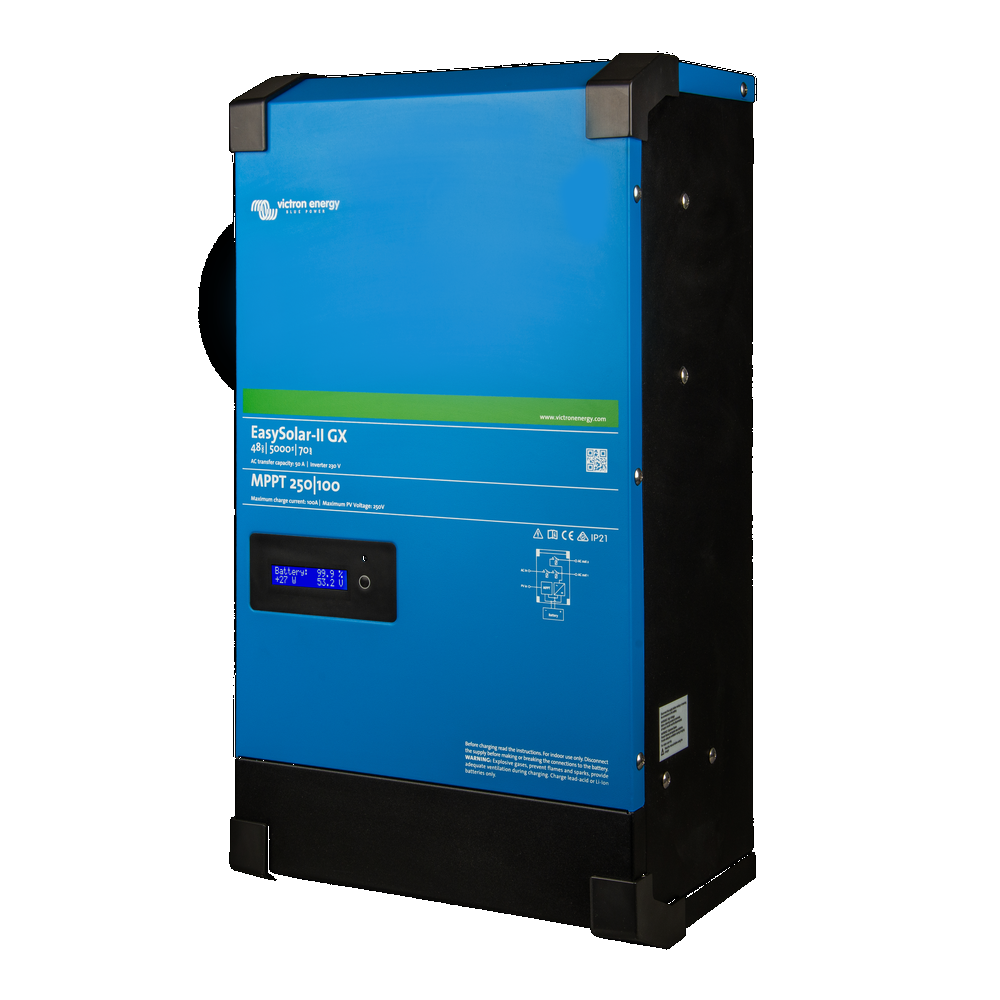

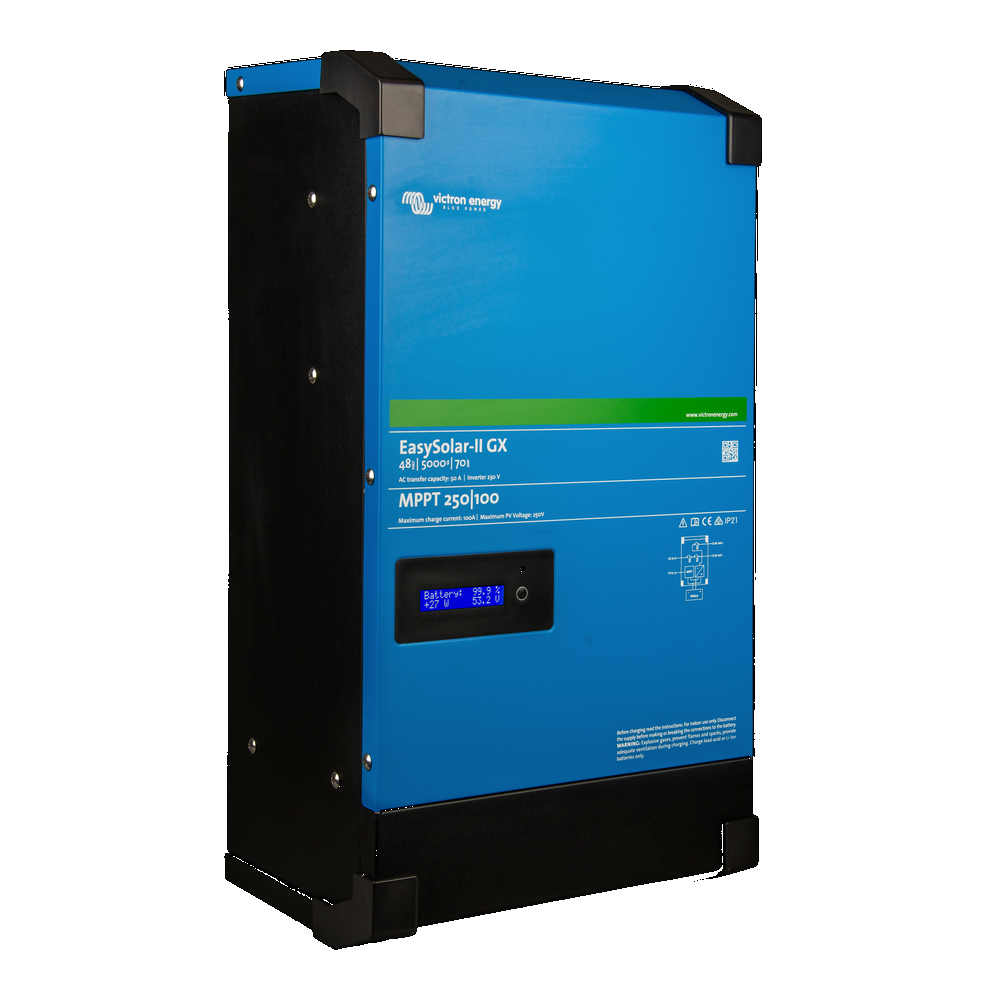

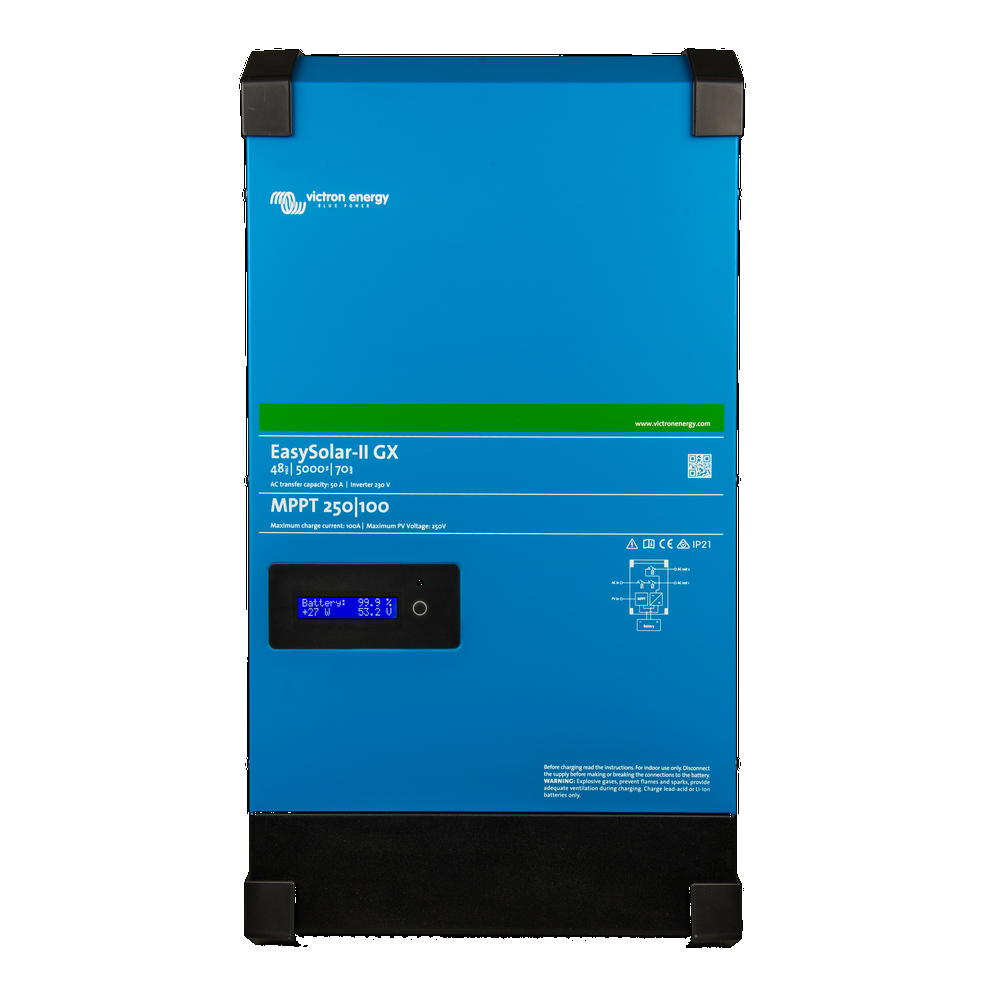

The Victron EasySolar-II GX 48V 5000VA is an All-in-one solar power solution that will put an end to your loadshedding woes.

The all-in-one solar power solution
The Victron EasySolar-II GX integrates the following elements:
• A MultiPlus-II inverter/charger
• A SmartSolar MPPT -Tr solar charge controller
• A GX device with a 2 x 16-character display.
These elements come prewired together inside a single unit. This greatly simplifies
most installations, saving time and money.

Display and Wi-Fi
The display reads battery, inverter and solar charge controller parameters.
The same parameters can be accessed with a smartphone or other Wi-Fi enabled
device.
In addition, Wi-Fi can be used to set up the system and to change settings.

Solar charge controller
The DC output of the SmartSolar MPPT is parallel wired with the DC connection of the
MultiPlus-II inverter/charger.
The on/off mechanism of the MultiPlus-II also controls the SmartSolar MPPT.

GX device

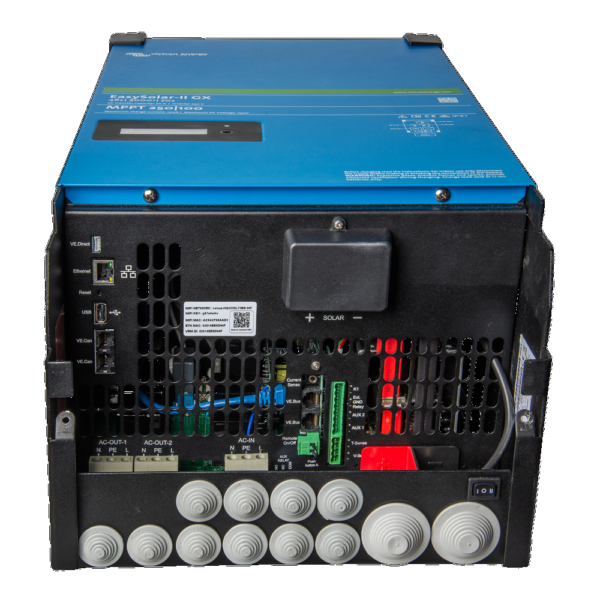

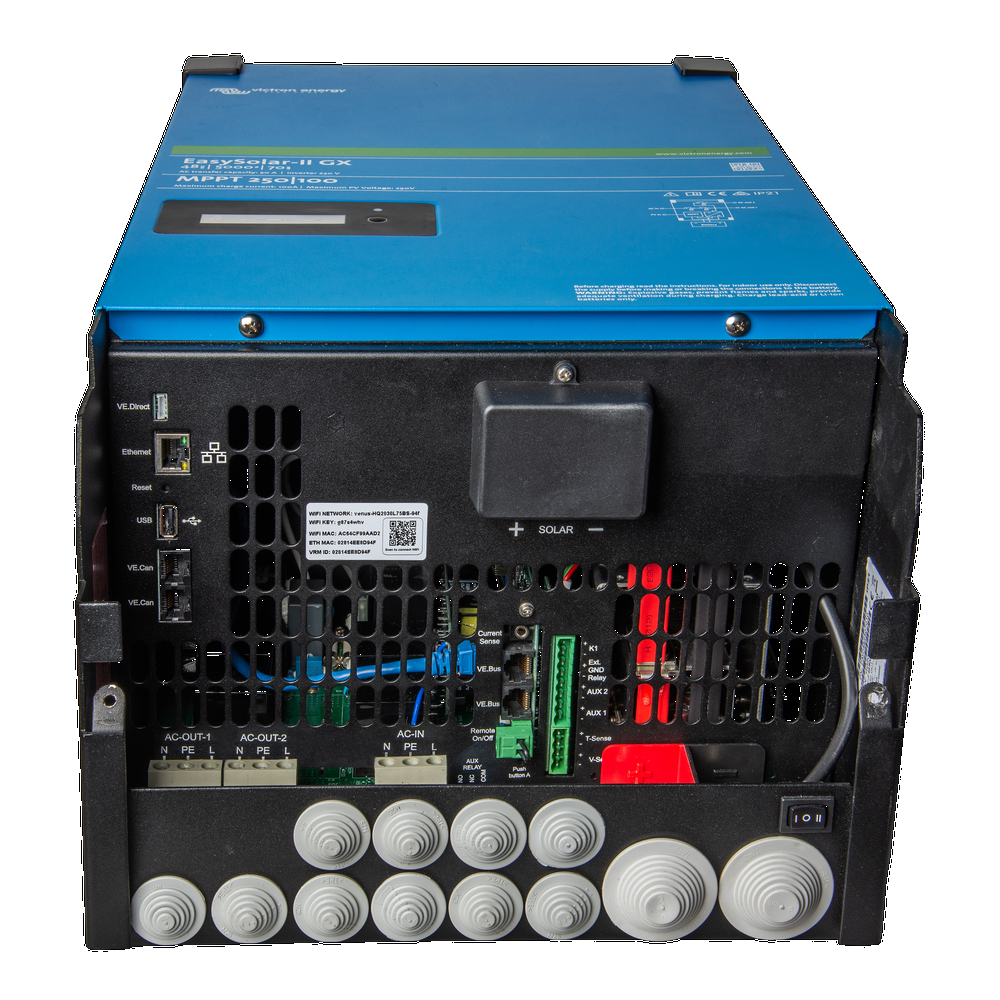

The integrated GX device includes:
• A BMS-Can interface. This can be used to connect to a compatible CAN-bus managed
battery. Note that this not a VE.Can compatible port.
• A USB port
• An Ethernet port
• A VE.Direct port

The GX device controls the MultiPlus-II and the SmartSolar MPPT with respectively a
VE.Bus and a VE.Direct connection.

Product Datasheets

Victron EasySolar-II GX – Datasheet

Enclosure Dimensions

Enclosure Dimensions (3D)

Enclosure Dimensions (2D)

Manuals

Product Manual

Certificates

Declaration of Conformity

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Stratus Cloud will not be held liable for any product malfunctions as a result of incorrectly installed systems.
